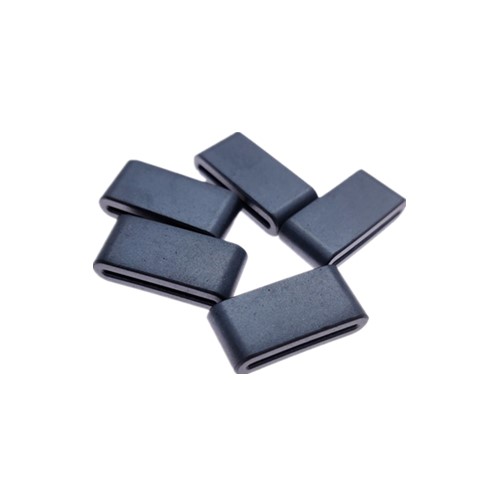

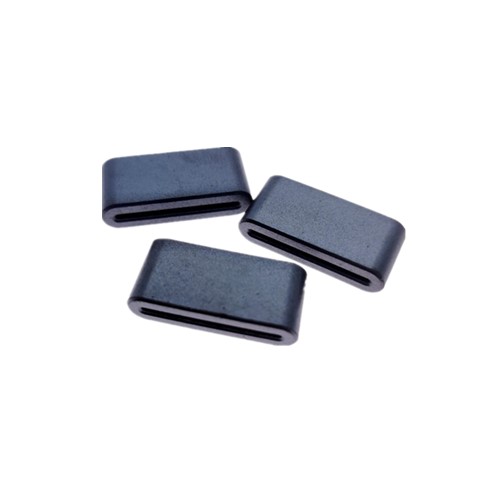

Flat Type Emi Ferrite Core For Ribbon Cable FS15.45.213.4*15-3.2

Name: Flat Type Emi Ferrite Core For Ribbon Cable FS154521341532
Brand: Careful
Price: 0.015 USD

Quality Flat Type Emi Ferrite Core For Ribbon Cable FS15.4*5.2*13.4*15-3.2 for sale

Model Number : FS15.4*5.2*13.4*15-3.2

Place of Origin : Zhejiang, China

Brand Name : Careful

MOQ : 1000 pieces

Price : $0.015-0.56/pieces

Type : Soft

Supplier Type : Factory direct sale

Application : Electronic and electrical equipment

Brand : Careful

Package Type : Carton

Operating Temperature : <300℃

Tolerance : 20%

Package / Case : As the customer required

Usage : emi for flat and ribbon cable

Frequency : 0.1mhz-1000mhz

Packaging Details : Standard exporting carton or as customer's request

Delivery Time : 7-20 Days

Contact Now

Careful direct sales NiZn material free sample FS15.4*5.2*13.4*15-3.2 good quality flat type emi ferrite core for ribbon cable

Products Description

Flat Type Emi Ferrite Core For Ribbon Cable FS15.4*5.2*13.4*15-3.2

item	value
Place of Origin	China
	Zhejiang
Brand Name	Careful
Model Number	FS Type
Type	Soft
Composite	Ferrite Magnet
Shape	Flat
Application	Industrial Magnet
Tolerance	±10%
Color	Natural
Product Name	NiZn Ferrite Core
Certification	ISO9001:2015
Usage	EMI for flat and ribbon cable

FS Specifications	Dimensions:mm
FS Specifications	A	B	C	D	E
3×2.5×4.2×1.5-0.6	3±0.3	2.5±0.3	4.2±0.3	1.5±0.3	0.6±0.3
5×3×3×9-1	5±0.3	3±0.3	3±0.3	9±0.4	1±0.3
5×3×3.4×9-1.4	5±0.3	3±0.3	3.4±0.3	9±0.4	1.4±0.3
5×3×3.4×4-1.4	5±0.3	3±0.3	3.4±0.3	4±0.3	1.4±0.3
5.5×3×4×3-1.4	5.5±0.3	3±0.3	4±0.3	3±0.3	1.4±0.3
6.5×3.8×4×5.5-1.5	6.5±0.4	3.8±0.4	4±0.4	5.5±0.4	1.5±0.4
6.5×3.8×4×9-1.5	6.5±0.4	3.8±0.4	4±0.4	9±0.4	1.5±0.4
6.7×4.7×4.3×2.7-3.2	6.7±0.3	4.7±0.3	4.3±0.3	2.7±0.3	3.2±0.3
7.5×2.8×5.5×10-0.8	7.5±0.3	2.8±0.3	5.5±0.3	10±0.4	0.8±0.3
7.5×5.3×5×5-2.8	7.5±0.3	5.3±0.3	5±0.3	5±0.3	2.8±0.3
7.5×5.3×5×8-2.8	7.5±0.3	5.3±0.3	5±0.3	8±0.3	2.8±0.3
7.5×5.5×5.3×8-3.3	7.5±0.5	5.5±0.5	5.3±0.5	8±0.5	3.3±0.5
7.5×5.5×5.3×11.5-3.3	7.5±0.5	5.5±0.5	5.3±0.5	11.5±0.5	3.3±0.5
8.5×5×6.2×3.4-1.3	8.5±0.5	5±0.5	6.2±0.5	3.4±0.4	1.3±0.4
9.1×3×7.5×9-1	9.1±0.3	3±0.3	7.5±0.3	9±0.3	1±0.3
9.1×5.6×7.2×5-3.7	9.1±0.5	5.6±0.5	7.2±0.5	5±0.5	3.7±0.5
9.1×5.6×7.2×7.8-3.7	9.1±0.5	5.6±0.5	7.2±0.5	7.8±0.5	3.7±0.5
10×3.8×7.8×2.5-1.6	9.1±0.5	5.6±0.5	7.2±0.5	7.8±0.5	3.7±0.5
10.5×2.1×8×3-0.6	10.5±0.4	2.1±0.3	8±0.3	3±0.3	0.6±0.3
10.5×2.1×8×5-0.6	9.1±0.5	5.6±0.5	7.2±0.5	7.8±0.5	3.7±0.5
11.5×3×8×8-0.7	11.5±0.4	3±0.3	8±0.3	8±0.3	0.7±0.3
11.5×3×8×12-0.7	11.5±0.4	3±0.3	8±0.3	12±0.4	0.7±0.3
11×6.8×7.4×12-3.2	11±0.5	6.8±0.5	7.4±0.5	12±0.5	3.2±0.3
11×7×7×12.5-3	11±0.5	7±0.4	7±0.4	12.5±0.5	3±0.3
11.5×3×8×6-0.7	11.5±0.5	3±0.3	8±0.4	6±0.4	0.7±0.3
12×4×8×17-0.8	12±0.5	4±0.3	8±0.4	17±0.5	0.8±0.3
12×4.5×9×3-1.5	12±0.4	4.5±0.3	9±0.3	3±0.3	1.5±0.3
12×4.5×9×12-1.5	12±0.5	4.5±0.5	9±0.5	12±0.5	1.5±0.5
12.6×8.6×7.4×8-3.4	12.6±0.4	8.6±0.3	7.4±0.3	8±0.3	3.4±0.3
13.5×7.5×9.5×12-3.8	13.5±0.4	7.5±0.3	9.5±0.3	12±0.4	3.8±0.3
13.5×7.5×9.5×14-3.8	13.5±0.5	7.5±0.4	9.5±0.4	14±0.5	3.8±0.3
13.5×7.5×9.5×15-3.8	13.5±0.4	7.5±0.3	9.5±0.3	15±0.4	3.8±0.3
13.5×2.75×11×8-0.7	13.5±0.5	2.75±0.3	11±0.5	8±0.4	0.7±0.3
14×5×10×10-0.8	14±0.5	5±0.3	10±0.5	10±0.5	0.8±0.3
14×8×10×5-4	14±0.4	8±0.3	10±0.4	5±0.3	4±0.3
14×8×10×8-4	14±0.5	8±0.3	10±0.5	8±0.5	4±0.3
14×8×10×12.5-4	14±0.5	8±0.4	10±0.5	12.5±0.5	4±0.3
14×8×10×15-4	14±0.4	8±0.3	10±0.4	15±0.4	4±0.3
14×8×10×17.5-4	14±0.4	8±0.3	10±0.4	17.5±0.4	4±0.3
15.4×5.2×13.4×5.5-3.2	15.4±0.5	5.2±0.3	13.4±0.5	5.5±0.3	3.2±0.3
15.4×5.2×13.4×15-3.2	15.4±0.5	5.2±0.3	13.4±0.5	15±0.5	3.2±0.3
15.5×3.5×13.5×2.85-1.4	15.5±0.4	3.5±0.3	13.5±0.4	2.85±0.3	1.4±0.3
15.5×3.5×13.5×8-1.4	15.5±0.5	3.5±0.3	13.5±0.5	8±0.4	1.4±0.3
15.5×3.5×13.5×10-1.4	15.5±0.4	3.5±0.3	13.5±0.4	10±0.4	1.4±0.3
15.5×8.5×10×18-3	15.5±0.5	8.5±0.4	10±0.5	18±0.5	3±0.3
16×13×10×10-7	16±0.5	13±0.4	10±0.5	10±0.5	7±0.4
16×4×14×10-1.5	16±0.5	4±0.3	14±0.5	10±0.5	1.5±0.3
16×5×11.5×8-0.8	16±0.5	5±0.3	11.5±0.5	8±0.4	0.8±0.3
16.8×7.2×14.8×5-5.2	16.8±0.5	7.2±0.4	14.8±0.5	5±0.3	5.2±0.3
16.6×7.2×14.6×11-4.8	16±0.5	7.2±0.4	14.6±0.5	11±0.5	4.8±0.3
17×2.75×13×5-0.7	17±0.4	2.75±0.3	13±0.4	5±0.3	0.7±0.3
17×7.2×13×5-5.2	17±0.5	7.2±0.4	13±0.5	5±0.3	5.2±0.3
17×2.75×13×12-0.7	17±0.5	2.75±0.3	13±0.5	12±0.5	0.7±0.3
18×5×14×8-1	18±0.5	5±0.3	14±0.5	8±0.4	1±0.3
18×5×14×12-1	18±0.4	5±0.3	14±0.4	12±0.4	1±0.3
18×5×14×15-1	18±0.4	5±0.3	14±0.4	15±0.4	1±0.3
19×6.5×13.5×12-1.8	19±0.6	6.5±0.5	13.5±0.6	12±0.5	1.8±0.5
19×6.5×13.5×16-1.5	19±0.4	6.5±0.3	13.5±0.4	16±0.4	1.5±0.3
19×6.5×13.7×14-1.7	19±0.4	6.5±0.3	13.7±0.4	14±0.4	1.7±0.3
19×6.5×13.7×16-1.7	19±0.4	6.5±0.3	13.7±0.4	16±0.4	1.7±0.3
19×6.5×14×6-2.4	19±0.4	6.5±0.3	14±0.4	6±0.3	2.4±0.3
19×6.5×14×8-1.7	19±0.6	6.5±0.5	14±0.6	8±0.5	1.7±0.5
19×6.5×14×8-2.0	19±0.6	6.5±0.5	14±0.6	8±0.5	2±0.5
19×6.5×14×12-1.8	19±0.6	6.5±0.5	14±0.6	12±0.5	1.8±0.5
19×6.5×14.5×12-2.5	19±0.6	6.5±0.5	14.5±0.6	12±0.5	2±0.5
20×11×13.5×12-5	20±0.6	11±0.5	13.5±0.5	12±0.5	5±0.3
20.5×2×17.5×8-0.6	20.5±0.6	2±0.3	17.5±0.5	8±0.4	0.6±0.3
21.65×4.5×17.5×8-0.65	21.65±0.6	4.5±0.3	17.5±0.5	8±0.4	0.65±0.3
21.65×5.15×17.5×10-1	21.65±0.6	5.15±0.3	17.5±0.5	10±0.5	1±0.3
21.65×5.15×17.5×12-1	21.65±0.5	5.15±0.3	17.5±0.4	12±0.4	1±0.3
22.8×2.8×18.7×12-0.7	22.8±0.6	2.8±0.3	18.7±0.5	12±0.5	0.7±0.3
22.8×2.8×18.7×16-0.7	22.8±0.5	2.8±0.3	18.7±0.4	16±0.4	0.7±0.3
23.3×3×20×15-1	23.3±0.5	3±0.3	20±0.5	15±0.4	0.7±0.3
23.5×6.5×18.5×6-1.5	23.3±0.5	6.5±0.3	18.5±0.4	6±0.3	1.5±0.3
23.5×6.5×18.5×12.5-1.5	23.5±0.6	6.5±0.5	18.5±0.6	12.5±0.5	1.5±0.5
23.5×6.5×19.5×12-1.4	23.3±0.5	6.5±0.3	19.5±0.4	12±0.4	1.4±0.3
23.5×6.5×18.5×15-1.1	23.5±0.6	6.5±0.5	18.5±0.6	15±0.5	1.1±0.5
23.5×6.5×19.5×15-1.4	23.5±0.6	6.5±0.5	19.5±0.6	15±0.5	1.4±0.5
23.5×6.5×19.5×15-1.8	23.3±0.5	6.5±0.3	19.5±0.4	15±0.4	1.8±0.3
25×5×21×9.5-1.5	25±0.6	5±0.5	21±0.6	9.5±0.5	1.5±0.5
25×5×21×12-1.5	25±0.6	5±0.5	21±0.6	12±0.5	1.5±0.5
25×5×21×15-1.5	25±0.5	5±0.3	21±0.5	15±0.4	1.5±0.3
25×5×21×18-1.5	25±0.5	5±0.3	21±0.5	18±0.4	1.5±0.3
25×7.7×18×16-0.9	25±0.5	7.7±0.3	18±0.4	16±0.4	0.9±0.3
25×7.7×18×24-0.9	25±0.6	7.7±0.4	18±0.5	24±0.6	0.9±0.3
25.5×4.3×22×2.85-0.8	25±0.5	4.3±0.3	22±0.5	2.85±0.3	0.8±0.3
25.5×4.3×22×6-0.8	25.5±0.6	4.3±0.3	22±0.6	6±0.4	0.8±0.3
26×5×22×7-0.8	26±0.6	5±0.3	22±0.6	7±0.4	0.8±0.3
26×6×20.5×20-0.8	26±0.5	6±0.3	20.5±0.5	20±0.5	0.8±0.3
26×6×20.5×23-0.8	26±0.5	6±0.3	20.5±0.5	23±0.5	0.8±0.3
26×12.5×16×6-2.5	26±0.5	12.5±0.4	16±0.4	6±0.3	2.5±0.3
26.5×5×22.5×12-0.9	26.5±0.6	5±0.3	22.5±0.6	12±0.5	0.9±0.3
28×5×24×12-0.8	28±0.7	5±0.3	24±0.6	12±0.5	0.8±0.3
28×7.7×23×9.7-2.4	28±0.5	7.7±0.3	23±0.5	9.7±0.3	2.4±0.3
28×7.7×23×12-2.4	28±0.7	7.7±0.5	23±0.6	12±0.5	2.4±0.5
28×8×21×15-2	28±0.7	8±0.5	21±0.6	15±0.5	2±0.5
28×14×20.5×9-7.2	28±0.5	14±0.4	20.5±0.5	9±0.3	7.2±0.3
28×14×20.5×13-7.2	28±0.7	14±0.5	20.5±0.6	13±0.5	7.2±0.5
28.5×6.5×21.5×15-1.4	28.5±0.7	6.5±0.3	21.5±0.6	15±0.5	1.4±0.3
28.5×8×22×10-2.1	28±0.5	8±0.3	22±0.5	10±0.4	2.1±0.3
28.6×3.75×25×10-0.7	28.6±0.7	3.75±0.3	25±0.6	10±0.5	0.7±0.3
29×3.2×27×6-0.8	29±0.7	3.2±0.3	27±0.7	6±0.4	0.8±0.3
29×3.2×27×12-0.8	29±0.5	3.2±0.3	27±0.5	12±0.4	0.8±0.3
29×8×22×10-2	29±0.7	8±0.5	22±0.6	10±0.5	2±0.5
29×8×22×12-2.4	29±0.7	8±0.5	22±0.6	12±0.5	2.4±0.5
32×6.5×28.5×9.5-2.5	32±1.0	6.5±0.5	28.5±0.6	9.5±0.5	2.5±0.5
32×6.5×27.5×9.5-3.0	32±1.0	6.5±0.5	27.5±0.6	9.5±0.5	3±0.5
32×6.5×28×12-2.5	32±1.0	6.5±0.5	28±0.6	12±0.5	2.5±0.5
33.5×6.5×27×8-1.3	33.5±1.0	6.5±0.5	27±0.6	8±0.5	1.3±0.5
33.5×6.5×27×10-1.3	33.5±1.0	6.5±0.5	27±0.6	10±0.5	1.3±0.5
33.5×6.5×27×12-1.3	33.5±1.0	6.5±0.5	27±0.6	12±0.5	1.3±0.5
33.5×6.5×27×15-1.3	33.5±1.0	6.5±0.5	27±0.6	15±0.5	1.3±0.5
33.5×6.5×27.5×8-1.5	33.5±1.0	6.5±0.5	27.5±0.6	8±0.5	1.5±0.5
33.5×6.5×27.5×10-1.8	33.5±1.0	6.5±0.5	27.5±0.6	10±0.5	1.8±0.5
33.5×6.5×27.5×12-1.8	33.5±1.0	6.5±0.5	27.5±0.6	12±0.5	1.8±0.5
33.5×6.5×27.5×15-1.8	33.5±0.6	6.5±0.3	27±0.5	15±0.4	1.8±0.3
36×7.5×31×20-1	36±1.0	7.5±0.4	31±1.0	20±0.6	1±0.3
36.6×5×32.4×12-0.8	36.6±1.0	5±0.3	32.4±1.0	12±0.6	0.8±0.3
38×7×34×23-1.5	38±1.0	7±0.4	34±1.0	23±0.6	1.5±0.3
38.5×4×35×8-0.8	38.5±0.6	4±0.3	35±0.6	8±0.3	0.8±0.3
38.5×4×35×10-0.8	38.5±0.6	4±0.3	35±0.6	10±0.4	0.8±0.3
38.5×4×35×12-0.8	38.5±1.5	4±0.4	35±1	12±0.5	0.8±0.4
38.5×4×35×18-0.8	38.5±1.5	4±0.4	35±1	18±0.6	0.8±0.4
39×4×35×12-0.8	39±0.6	4±0.3	35±0.6	12±0.4	0.8±0.3
40×6.5×35×5.5-1.8	40±0.7	6.5±0.3	35±0.6	5.5±0.3	1.8±0.3
40×6.5×35×8-1.8	40±0.7	6.5±0.3	35±0.6	8±0.3	1.8±0.3
40×6.5×35×10-1.8	40±0.7	6.5±0.3	35±0.6	10±0.4	1.8±0.3
40×6.5×35×12-1.8	40±1.5	6.5±0.5	35±1	12±0.5	1.8±0.5
40×6.5×35×15-2	40±1.5	6.5±0.5	35±1	15±0.5	2±0.5
40×6.5×35×18-2	40±1.5	6.5±0.5	35±1	18±0.5	2±0.5
45.2×6.5×40×12-1.4	45.2±1.5	6.5±0.4	40±1.5	12±0.5	1.4±0.3
45.2×6.5×40×18-1.4	45.2±0.7	6.5±0.3	40±0.7	18±0.4	1.4±0.3
49.6×6.5×44×10-1.3	49.6±0.7	6.5±0.3	44±0.7	10±0.4	1.3±0.3
49.6×6.5×44×12-1.3	49.6±1.5	6.5±0.5	44±1	12±0.5	1.3±0.5
49.6×7.6×44×12-1.45	49.6±0.7	7.6±0.3	44±0.7	12±0.4	1.45±0.3
54×6.6×44×15-1.6	54±0.8	6.6±0.3	44±0.7	15±0.4	1.6±0.3
54×6.6×44×18-1.6	54±0.8	6.6±0.3	44±0.7	18±0.4	1.6±0.3
57.2×6.5×51.6×12-1.2	57.2±2.0	6.5±0.5	51.6±1.5	12±0.5	1.2±0.5
57.2×6.5×51.6×18-1.2	57.2±0.8	6.5±0.3	51.6±0.8	18±0.4	1.2±0.3
58×13×14×15-2	58±0.8	13±0.4	14±0.4	15±0.4	2±0.3
64×10.5×56×12-2.5	64±0.9	10.5±0.4	56±0.8	12±0.4	2.5±0.3
72.5×9×65×10-1.5	72.5±1	9±0.3	65±0.9	10±0.4	1.5±0.3
115×25×50×90-25	115±1.4	25±0.5	50±0.8	90±1.2	25±0.5
170×91×130×18.5-51	170±2	91±1.2	130±1.5	18.5±0.4	51±0.8
